NB! STRØMKABEL LEVERES UTEN STØPSEL. SE TILBEHØR FOR ALTERNATIVER

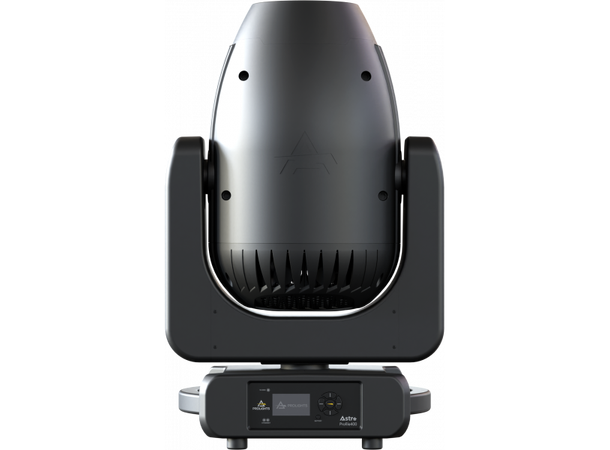

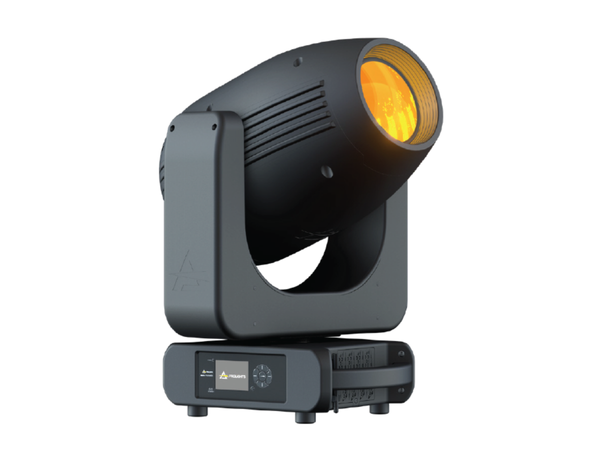

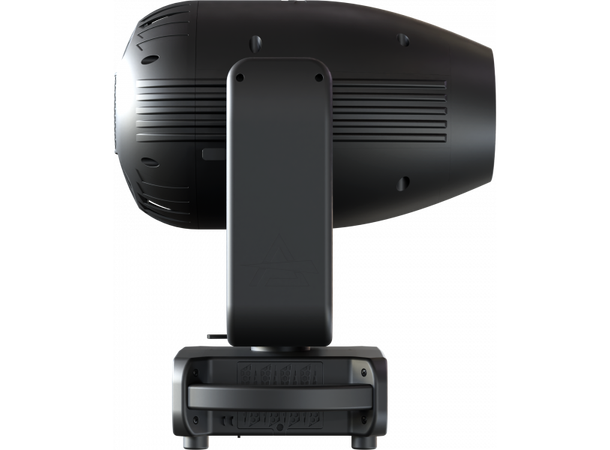

The Astra Profile400 is a multi-purpose indoor LED profile moving light, with an ultra-high lumen efficiency, a punchy output, and stunning effects. Its feature set includes framing shutters and an animation wheel, but it still has a small form factor and light weight, making the Astra Profile400 the perfect replacement for fixtures with a higher power consumption. Its light source delivers a pure white light emission, calibrated at 7,000K, reaching 18,300 lumens whilst achieving a flat field beam projection. The Astra Profile400’s optical system moves linearly from 7° to 50°, and it’s equipped with a brand-new 400W LED source. The extensive feature set of the Astra Profile400 includes a 4-layer motorized framing system, linear CMY and CTO, colour and gobo wheels, two frost filters, prism, and an iris.
Technical specifications
LIGHT SOURCE
- Source: 400W White LED
- CCT: 7.000K
- Luminous flux: (6,5°) 9'143 - (50°) 17'598
- Lux: (6,5°) 37'468 lx (50°) 1'690lx @5 m
- CRI: > 70 (CCT 5.600K and CRI > 90 with filter on color wheel)
- Source life expectancy: > 50.000 hrs (L70B10 @Ta 25° C / 77° F)
OPTICS
- Zoom range: 6,5° - 50° motorised linear zoom
- Lens diameter: 120mm / 4.72''
- Lens type: HD anti-reflection lenses with achromatic coating
- Focus: motorised
COLOUR SYSTEM
- Colour mixing: linear CMY
- CCT: linear CTO correction 2.700 K ~ 7.000 K
- Colour wheel: open + 5,600K high CRI filter + 7 colour filters
DYNAMIC EFFECTS
- Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
- Animation wheel: animation wheel with CW and CCW rotation
- Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
- Gobo size: outer: 25,7 mm - image: 20 mm - thickness: 1,1 mm
- Circular prism: 4f with bi-directional rotation, indexing
- Frost: linear 0 - 100% frost filter
- Iris: 5 - 100% motorised iris
BODY
- Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
- Pan range: 540°
- Tilt range: 270°
- Pan/Tilt resolution: bit 8 / 16-bit
- Feedback: automatic repositioning after accidental movement
- Body: aluminium structure with high-resistance polycarbonate cover
- Body colour: black
CONTROL
- Protocols: DMX512, RDM, ArtNet, sACN, CRMX
- DMX channels: 29 / 39 / 54channel
- Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
- RDM: RDM for remote monitoring and settings
- Display: Graphic User Interface
- Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included)
- Other: 16bit control of dimmer and colour
ELECTRONICS
- Dimmer: linear 0 ~ 100% electronic dimmer
- Dimmer curves: selectable dimming modes available
- Strobe / shutter: 1 - 30 Hz, electronic
- Display battery: self-charging battery backup
- Operating temperature: -10° ~ +45° Ta
- LED Control: flicker free frequency with adjustable PWM
- Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
- Mains power supply: 100-240V - 50/60Hz
- Max power consumption: 620W
- Standby power: 113 W
- Output (at 230V): 3 units on a single power line
- Power factor: > 0,96
PHYSICAL
- IP rating: 20
- Cooling: combination of heat pipe cooling system and low noise fan
- Suspension and fixing: any position with quick-lock omega brackets
- Pan / tilt lock: for transportation and maintenance

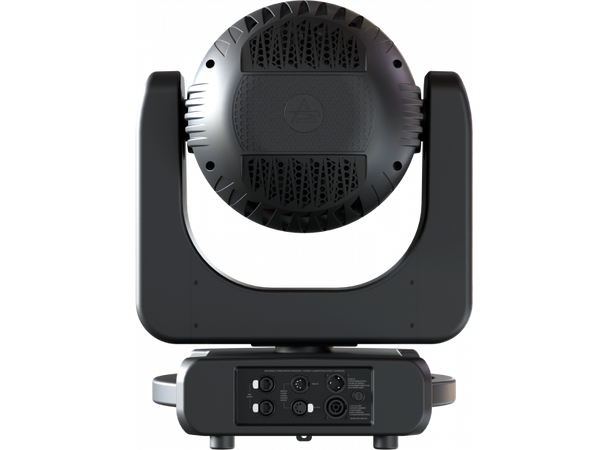

- Signal connection: Amphenol XLR 5p IN/OUT connectors
- Data connection: Art-Net RJ45 IN/OUT
- Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
- Dimensions (WxHxD): 410x639x278mm / 16.14''x25.16''x10.94''
- Weight: 27,6kg / 60.85lbs
CERTIFICATIONS / APPROVALS
- Certifications / Approvals: CE, UKCA, RCM, cTUVus, FCC
BOX CONTENT
- 1 x ASTRAPROFILE400
- 2 x OS24
- 1 x 1,5 meters 3G1,5mmq power cable (BARE END - NEUTRIK POWERCON TRUE1 IP65 power connector)
- User Manual
