NOTE: the product only include the main frame, no input cards, no output cards and no additional backup power supply are included. Please choose them from available accessories.

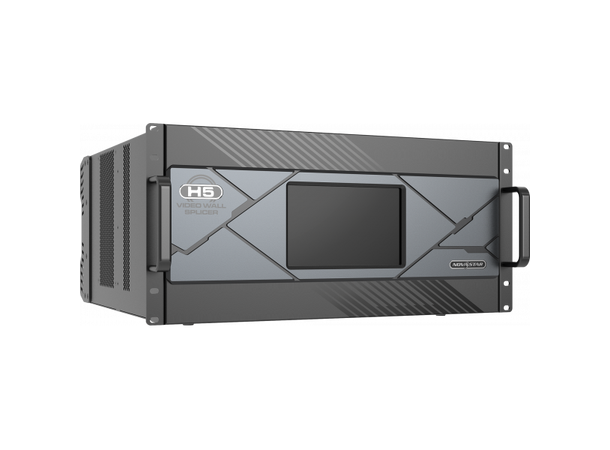

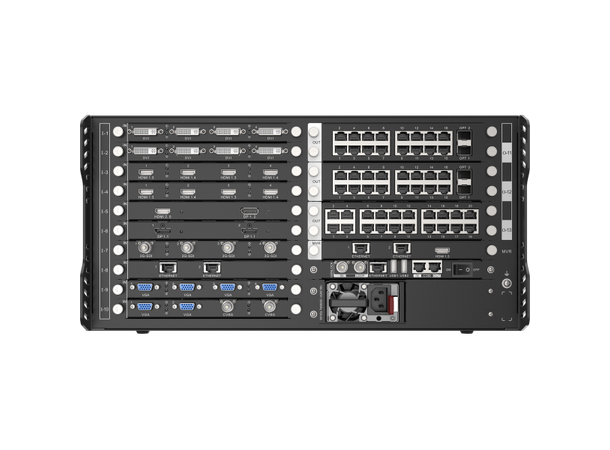

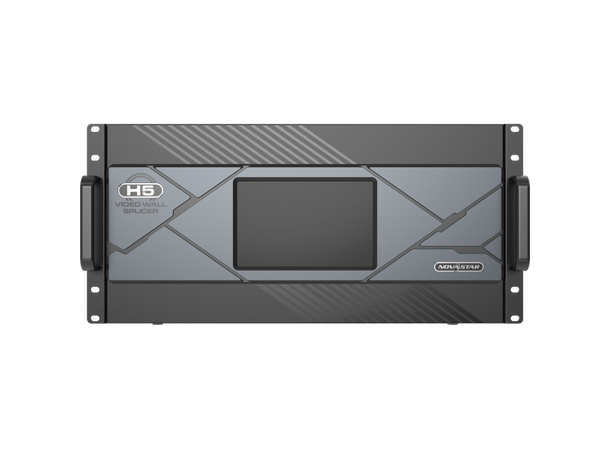

The Novastar H series is NovaStar's newest generation of video wall splicer splicer, featuring excellent image quality and designed especially for fine-pitch LED screens. The Novastar H series can work as splicing processors that integrate both video processing and video control capabilities, or work as pure splicing processors. The whole unit adopts a modular and plug-in design, and allows for flexible configuration and hot swapping of input and output ca cards. Thanks to excellent features and stable performance, the Novastar H series can be widely used in a variety of applications, such as energy and power, judicial departments and prisons, military command, water conservancy and hydrology, meteorologic earthquake predict ion, enterprise management, metallurgy of steel, banking and finance, national defense, public security traffic management, exhibitions and presentations, production scheduling, radio and television, educational and scientific research, as well as stage re ntal applications.
- Two kinds of LED 4K sending cards
- H_20xRJ45 sending card loads up to 13,000,000 pixels.
- H_16xRJ45+2xfiber sending card loads up to 10,400,000 pixels and provides two OPT ports that copy the outputs on Ethernet ports.
- MultiMulti-capacity configuration on a single card slot
- 4x 2K ×1K @60Hz
- 2x 4K ×1 K@60Hz
- 1x 4K ×2 K@60Hz
- Simple screen configuration using a single card and connector
- Online status monitoring of all input and output cards
- Hot -swappable input and output cards
- H_2xRJ45 IP input card supports up to 100 IP camera inputs and input mosaic.
- Auto decryption of HDCP HDCP-encrypted sources
- HDR10 and HLG processing
- Each screen can have its own output resolution.
- Output mosaic: adopts the frame synchronization technology, which ensures all the output connectors output the image synchronously, and the image is
- complete and played smoothly, without any stuck, frame loss, tearing or piecing.
- Irregular screen configuration: supports irregul ar rectangle mosaic without any limitations.
- Input source grouping management
- Eye saver mode: display the image in a warmer but less bright way to relieve eye strain.
- LCD bezel compensation
- Multi-layer display: a single card supports 16x 2K layers, 8x DL layers or 4x 4K layers. All layers support cross cross-connector output and the layer quantity is not reduced for cross -connector output.
- High -definition scrolling text: customize the scrolling text content, such as slogans or notification messages, and set the text style, scrolling direction and speed.
- Up to 2 2,000 presets: fade effect and seamless switching supported supported, less than 60ms preset switching duration
- Scheduled playback of preset playlist: set whether to add the preset s to playlist playlist, which is ideal for monitoring , exhibitions, presentations, and other applications.
- OSD settings on a single screen and adjustable: OSD transparency
- BKG se ttings: BKG images do not occupy the layer resources. The max. width and height of a BKG image is up to 15K and 8K respectively respectively.
- Channel logo management: set a text or image logo for identifying the input sourcesource.
- Input source cropping and renaming after crop ping: crop any input source image and form a new input source after cropping.
- HDR and 10 10-bit video processing, allowing for a more exquisite and clear image
- Color adjustment: input, output and layer color adjustable, including the brightness, contrast, satur ation, hue and Gamma
- XR scenario control
- 3D function: Work with NovaStar's 3D emitter EMT200 to enjoy the 3D visual effect.
- Web control: real -time respon response and 1000M/100M self self-adaptive network control, allowing for multi multi-user collaboration
- Monitoring of inputs and outputs on Web page
- Firmware update on Web page
- Ark Visualized Management and Control: platform APP control on pad device
- Self-test for fault detection
- Auto monitoring and alarms: supports hardware monitoring, such as fan rotation speed, module temperature and voltage, running status, and sends fault alarms if necessary.
- Supports an optional power supply for higher system reliabilityreliability.
- Backup design
- Backup between devices
- Backup between LED 4K sending cards
