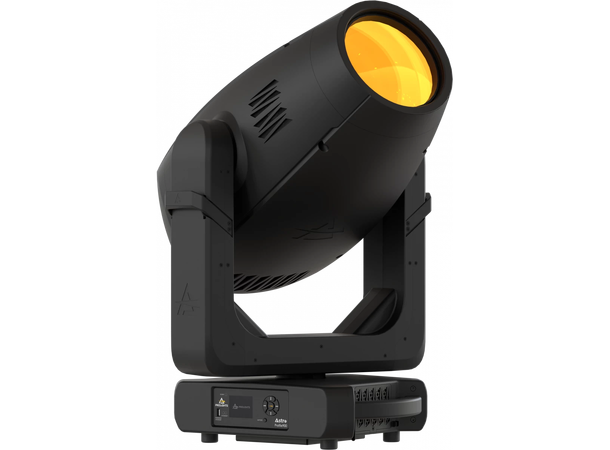

900W high quality Profile Moving head, 6000K and CRI of 96, with 185mm optics and 5° - 52° zoom
The Astra Profile900HQ is the flagship, high-quality profile moving head designed for large-scale theaters, TV & Film production. Powered by a 900W LED source with CRI 96, it delivers a bright and peerfectly balanced 6000K White, making it an exceptional key light for any major production.
Its large 185mm front lens and versatile 5°-52° zoom range ensure outstanding performance at virtually any distance. The new MotiOs motion ecosystem enhances speed, precision, and responsiveness across pan, tilt, internal wheels, and framing modules, setting a new standard in motion control.
For precise color control, the Astra Profile900 features linear CMY+CTO mixing and a color wheel, delivering high output saturated colors and balanced whites. Additional highlights include dual rotating gobo wheels, an animation wheel, a four-layer framing system, dual prisms, dual frost filters, and iris—making it adaptable to a wide variety of production needs.
900W 6000K White LED source with CRI 96Ra
185mm front lens with a 5°-52° zoom
MotiOs enhances motion speed, precision, and responsiveness across motorized features
CMY+CTO Color mixing, one color wheel, 4 framing shutters, 2 rotating gobo wheels, 1 animation wheel, 2 frost, 2 prisms, iris
Technical specifications
LIGHT SOURCE
Source: 900W White LED
CCT: 6.000K
Luminous flux: (5,4°) 13'969 lm - (med) 25'941 lm - (52°) 25'311 lm
Lux: (5,4°) 74'135 lx - (med) 9'836 lx - (52°) 1'659lx @5 m
CRI: 96
R9: 90
TLCI: 97
TM30 Rf: >91
TM30 Rg: <99
Source life expectancy:
OPTICS
Zoom range: 5,4° - 52° motorised linear zoom
Lens diameter: 185mm / 7.28''
Lens type: HD anti-reflection lenses with achromatic coating
Focus: motorised 16-bit control with focus tracking
COLOUR SYSTEM
Colour mixing: linear CMY
CCT: linear CTO correction 2.700 K ~ 6.000 K
Colour wheel: open + 6 colour filters
DYNAMIC EFFECTS
Control Resolution: 16-bit dimmer
Shutter system: 4 shutter blades with position and ±30° angle adjustment, ±45° rotation of the complete framing system
Animation wheel: animation wheel with CW and CCW rotation
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm
Rotating gobos: 7 rotating gobos + open, interchangeable, indexing
Gobo size: outer: 30 mm - image: 25 mm - thickness: up to 3 mm
FX generator: 2 prisms overlap for spectacular aerial effects
Circular prism: 4f with bi-directional rotation, indexing
Linear prism: 6f with bi-directional rotation, indexing
Frost: dual frost filter, soft-edge and heavy (one interchangeable)
Iris: 5 - 100% motorised iris
BODY
Hardware on-board: sockets for quick-Lock Omega bracket (clamp not included)
Pan range: 540°
Tilt range: 270°
Pan/Tilt resolution: bit 16-bit
Feedback: automatic repositioning after accidental movement
Body: aluminium structure with high-resistance polycarbonate cover
Body colour: black
CONTROL
Protocols: DMX512, RDM, ArtNet, sACN, CRMX
DMX channels: 46channel
Wireless Control: included, LumenRadio Timo Fx DMX/RDM compatible with both CRMX (Lumen Radio) and W-DMX (Wireless DMX)
RDM: RDM for remote monitoring and settings
Display: Graphic User Interface
Firmware upgrade: via DMX with UPBOXPRO/UPBOX2 (USB-DMX interface not included) or via USB pen drive
EtherFlow: Ethernet pass-through switch that preserves network connectivity even when the fixture is unpowered.
ELECTRONICS
Dimmer: linear 0 ~ 100% electronic dimmer
Dimmer curves: 4 selectable dimming modes available
Strobe / shutter: 1 - 30 Hz, electronic
Display battery: self-charging battery backup
Operating temperature: -10° ~ +45° Ta
LED Control: flicker free frequency with adjustable PWM
Selectable PWM: 600 ~ 50.000 Hz
ELECTRICAL
Mains power supply: 100-240V - 50/60Hz
Max power consumption: 1310W
Standby power: 150 W
Output (at 230V): 2 units on a single power line
Power factor: > 0,97
PHYSICAL
IP rating: 20
Cooling: combination of heat pipe cooling system and low noise fan
Suspension and fixing: any position with quick-lock omega brackets
Pan / tilt lock: for transportation and maintenance
Signal connection: Neutrik XLR 5p IN/OUT connectors
Data connection: Neutrik Art-Net RJ45 IN/OUT
Power connection: Neutrik powerCON TRUE1 IN/OUT connectors
Dimensions (WxHxD): 516x856x310mm / 20.31''x33.7''x12.2''
Weight: 45,2kg / 99.65lbs
CERTIFICATIONS / APPROVALS
BOX CONTENT
